Multilayer Stainless Steel Filter Press , Anticorrosive Pure Water Treatment System
Product Details:
Place of Origin: | Guangzhou |
Brand Name: | Weidong |
Certification: | CE & ISO9001 |
Model Number: | WD-0865 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden size |
Delivery Time: | 5-7 days |
Payment Terms: | T/T, Western Union, MoneyGram, D/P, D/A, L/C |
Supply Ability: | 10 set per month |
Detail Information |
|||
Weight: | 120kg | Applicable Viscosity: | 0.15 |
---|---|---|---|
Principle: | Pressurized Filtration | Size: | 600*300*600 Mm |
Filtering Precision: | 0.8% | Type: | Pure Water Treatment System |
Pressure: | 0.15-0.3Mpa | Warranty: | 1 Year |
Highlight: | Multilayer Stainless Steel Filter Press,Stable Stainless Steel Filter Press,Anticorrosive Pure Water Treatment System |
Product Description

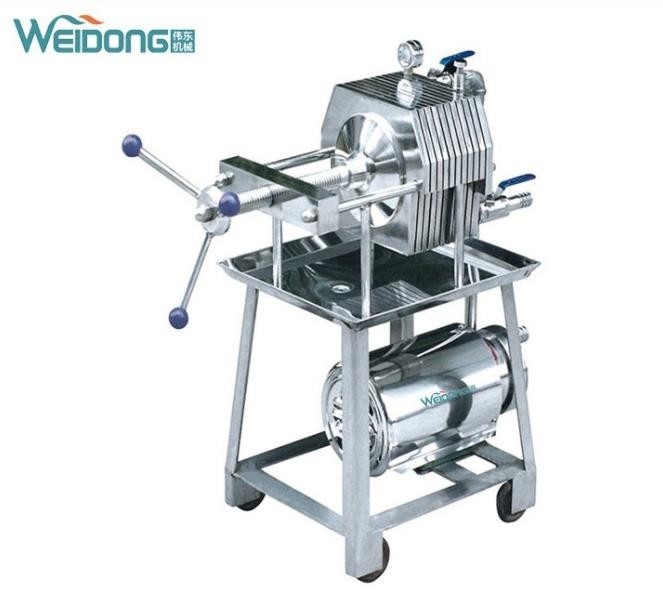

Laminated Closed Stainless Steel Multilayer Plate And Frame Filter
Description:
The Laminated Closed Stainless Steel Multilayer Plate And Frame Filter is made of special corrosive resistant stainless steel with a special structure, material and surface treatment. It is widely used in industries like mineral processing, chemical industry, food industry and pharmaceutical industry as a part of pressurized filtration system.
This multilayer stainless steel filter is produced under high pressure. Its quality is similar to the German technology. The advantages of this kind of filter are as follows:
1) Filter resin structure is uniform,
) Filter media is firmly adhered and has a good water-absorbing characteristic,
3) The pressure resistance of the filter membrane is good;
4) Long service life (10-20 years )
Stainless steel filter plate and frame is made of various stainless steel materials, which have excellent corrosion resistance, high temperature-resistant ability, long operation time and so on. The use of advanced production technology, accurate machining and surface hardening treatment to make it high-strength and reliability. In addition, by adopting the pressure vessel design principle and guaranteeing a reliable internal pressure balance with high efficiency, large flow can be used in both urban water supply pipelines or rural water supply pipelines.
Excellent performance and durability. The stainless steel frame filter is equipped with a high-tech multi-layer plate filter. It also has a heavy duty high temperature silicone gasket, which can withstand even in high temperatures. This prevents the leakage of water and prolongs the life of this city water filter.
Specification:
Model | Layers |
Filter area (m²) |
Filter material size (mm) |
Pore diameter of filter membrane (um) |
Pressure (Mpa) |
Follow (t/h) |
Power (kw) |
Size (mm) |
WD-11-10 | 10 | 0.078 | 100 | 0.8 | 0.15 | 0.8 | 0.55 | 600*300*600 |
WD-1B-10 | 10 | 0.170 | 150 | 0.8 | 0.15 | 1.5 | 0.75 | 650*380*650 |
WD-12-10 | 10 | 0.314 | 200 | 0.8 | 0.15 | 2 | 1.1 | 650*400*700 |
WD-13-10 | 10 | 0.700 | 300 | 0.8 | 0.15 | 4 | 1.1 | 700*500*800 |
WD-14-10 | 10 | 1.250 | 400 | 0.8 | 0.15 | 6 | 1.1 | 900*600*1000 |
WD-14-16 | 16 | 2.000 | 400 | 0.8 | 0.15 | 9 | 1.5 | 1000*600*1000 |
WD-14-20 | 20 | 2.500 | 400 | 0.8 | 0.2 | 10 | 1.5 | 1100*600*1000 |
WD-14-32 | 32 | 4.000 | 400 | 0.8 | 0.3 | 13 | 2.2 | 1320*600*1000 |
WD-15-12 | 12 | 2.000 | 500 | 0.8 | 0.3 | 8 | 1.5 | 1100*720*1200 |
WD-15-16 | 16 | 3.000 | 500 | 0.8 | 0.3 | 13 | 2.2 | 1350*720*1200 |
WD-15-22 | 22 | 4.000 | 500 | 0.8 | 0.3 | 16 | 2.2 | 1350*600*1200 |
Applications:
Water treatment,Water for food factory, Beverage industry,cosmetic cream, shampoo, perfume, sewage disposal,Natatorium facilities,Paper and Textile etc.
