5-2000L Cosmetic Vacuum Homogenizing Emulsifying Mixer 7.5 kW 220V 380V
Product Details:
| Place of Origin: | guangdong |
| Brand Name: | Weidong |
| Certification: | ISO9001 |
| Model Number: | WD-E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 9800-10000/Set |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5-7 Days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Set/Sets per Month |
|
Detail Information |
|||
| Mixer Type: | Homogenizer | Dimension(L*W*H): | 500*500*5~3000*3800*12 |
|---|---|---|---|
| Barrel Volume (L）: | 300 | Range Of Spindle Speed(r.p.m): | 1 - 63 R.p.m |
| Material: | SUS304, SUS304L, SUS316 | Voltage: | 220V/380V |
| Power (kW): | 7.5 KW | Core Components: | Motor, Gear, Pressure Vessel, Gearbox, Pump, PLC, Bearing, Engine |
| Application: | Liquid, Medicine Processing, Chemicals Processing, Plastics P | ||
| Highlight: | Cosmetic Vacuum Homogenizing Emulsifying Mixer,2000L Homogenizing Emulsifying Mixer,7.5kW Cosmetic Emulsifier Mixer |
||
Product Description

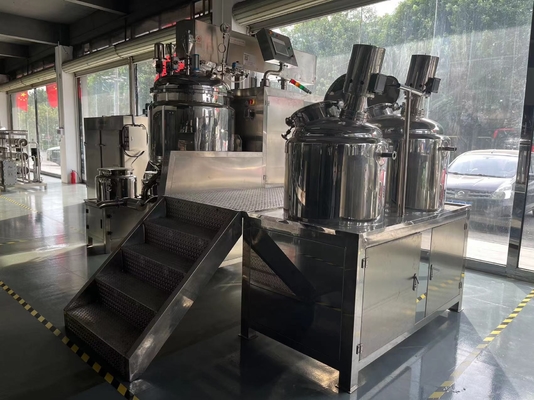

5-2000L Cosmetic Vacuum Homogenizing Emulsifying Mixer
Product Description:
This machine is used for cosmetic cream and lotions,The vacuum emulsifier is professionally designed according to the ointment manufacturing process of cosmetics and ointments etc. products through introducing advanced technology from abroad. The machine unit is composed of pre-treating boiler, vacuum emulsifying and blending boiler, vacuum pump,hydraulic system, dumping system, electric control system and work platform etc. The machine unit is featured by simple operation, stable performance, good homogenizing performance, high production efficiency, convenient cleaning, reasonable structure, small land area and high automatic degree etc.
| Model | Effective capacity | Emulsify | Agitator | ||
| KW | R/min | KW | R/min | ||
| WD-20 | 20 | 0.75 | 0-3000 | 0.37 | 0-40 |
| WD-50 | 50 | 2.2 | 0-3000 | 0.37 | 0-40 |
| WD-100 | 100 | 3 | 0-3000 | 1.5 | 0-40 |
| WD-150 | 150 | 3 | 0-3000 | 1.5 | 0-40 |
| WD-200 | 200 | 4 | 0-3000 | 1.5 | 0-40 |
| WD-350 | 350 | 4 | 0-3000 | 2.2 | 0-40 |
| WD-500 | 500 | 5.5 | 0-3000 | 2.2 |
0-40 |
Feature:
1.high sanitary standard manufacturing
2.internal surface mirror polished
3.agitation group consisting of two slow agitators and one fast agitator
4.double speed slow agitators(stepless speed variation as optional)
5.double speed fast agitators(stepless speed variation as optional)
6.mechanical seal of agitation groups
7.lifting cover system
8.tilting vessel
9.body and agitators made of SS AISI 316L
10.internal pressurization for discharge and inertization
11.SS AISI 304jacket
12.cover for thermal insulation made of SS tank in tank13.vacuum group
14.heating station
15.sterilizing filter installed on the vacuum-breaking device
16.cleaning balls
17.embedded CIP group
18.product temperature check by means of Pt 100 probe,special sheath ,close to the side
19.buttons or PLC controlled process functions
20.electronic weighing system.
