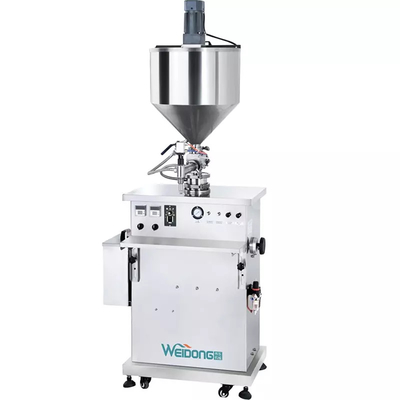

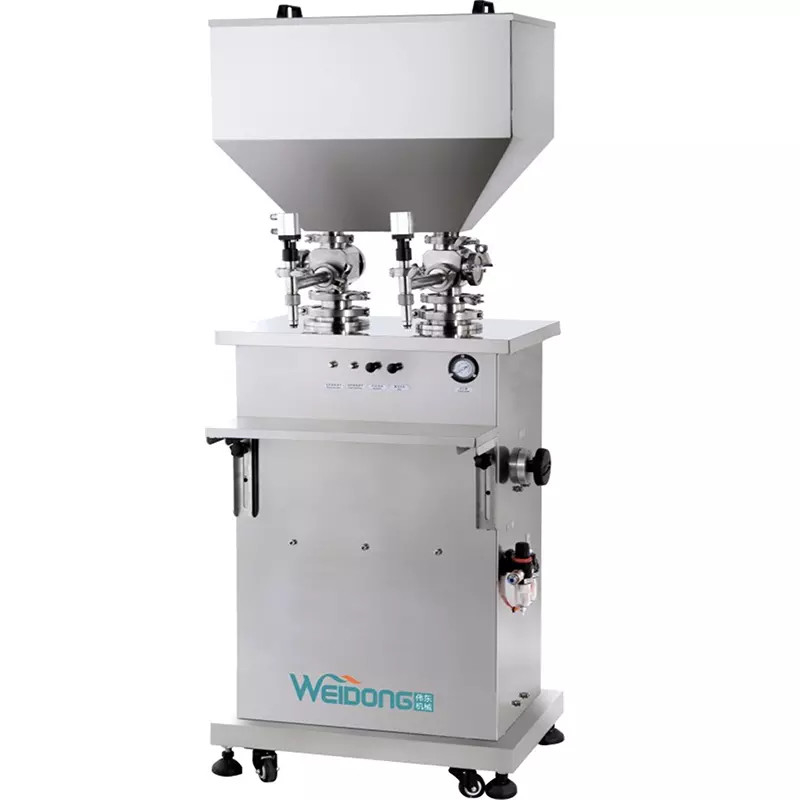

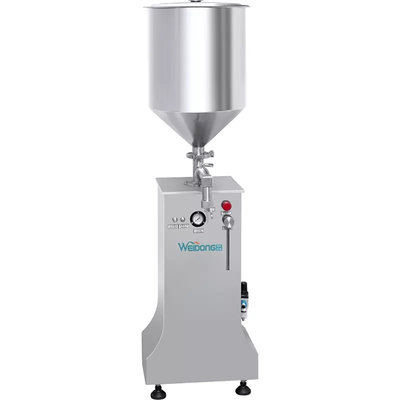

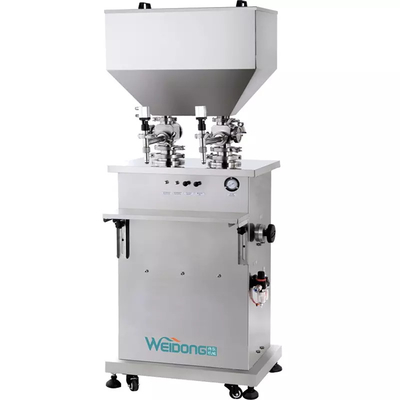

Rustproof 316L Vertical Filling Machine , 50HZ Semi Automatic Liquid Filling Machine

Rustproof 316L Vertical Filling Machine , 50HZ Semi Automatic Liquid Filling Machine

Product Details:

Place of Origin: Guangzhou
Brand Name: Weidong
Certification: CE & ISO9001
Model Number: QGF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1350/SET
Packaging Details: wooden case
Delivery Time: 5-7 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 30 SETS per month
Get Best Price Contact Now

Detail Information

Packaging Material: Plastic, Paper, Metal, Glass, Wood Weight: 45kg
Driven Type: Pneumatic Dimension: 620mm*720mm*1980mm
Machinery Capacity: 8000BPH, 12000BPH, 20000BPH, 16000BPH Material: 316L+304 Stainless Steel
After-sales Service Provided: Online Support, Video Technical Support Power: 220V/50HZ
Highlight:

Rustproof Vertical Filling Machine

,

316L Vertical Filling Machine

,

50HZ Semi Automatic Liquid Filling Machine

Product Description

Rustproof 316L Vertical Filling Machine , 50HZ Semi Automatic Liquid Filling Machine



Description:



Filling machine adopts programmable logic controller (PLC) human and machine interface( HMI) technology ,equipped with imported photoelectric track switch from Korea .



Itis suitable for filling ointment products in the industries such as ointment ,oil products ,syrup,shampoo ,chemical and fruit juice etc.The filling nozzle will be automatically inserted into the bottle and carry out the filling and then rapidly ascend ,which can reduce the air bubbles .



The product integrates electric and pneumatic functions into one ,with reasonable design ,stable performance ,accurate quantity ,glass table surface ,automatic bottle feeding ,steady operation without noise ,electric speed control to the filling speed and filling volume and convenient maintenance and cleaning . The new type filling equipment is the best choice for the realization of automatic

production .





Feature and advantage:



(1) Vertical Pneumatic Ointment and Liquid Filling Machine adopts imported
mechanical components, Taiwan's guest cylinder, piston using cylinder can travel 500000 km;

(2) mechanical design is unique, at first, the solid method to ensure the absolute lead in similar products

First, measurement precision, can be controlled within 0.5%;

(3) the new design, light and convenient, can automatically draw the material (liquid), exempt from hopper frequent charging trouble;

(4) manual and automatic switch to each other, as well as artificial foot filling, but also mechanical automatic filling; Material cylinder, tee part adopts fast connection, convenient disassembly, convenient cleaning, comply with GMP standard

(5) when filling the cylinder moves up and down, drive straight, straight down, down the cylinder Cylinder up, straight up, not noly, wire drawing;

Specification:



Name Vertical Pneumatic Ointment and Liquid Filling Machine
Model Weidong5-5000ML
Article Liquid or paste
Volume 5-60ml 10-120ml 25ml-250ml 50-500ml 100-1000ml 250-2500ml 500-5000ml
Filling Piston pump
Precision ±0.5%
Pneumatic 0.2-0.6Mpa
Caliber ≥5mm
Capacity 20-60 times/min
G.W. 35Kg.
Dimension L750*W500*H1350mm



Rustproof 316L Vertical Filling Machine , 50HZ Semi Automatic Liquid Filling Machine 0Rustproof 316L Vertical Filling Machine , 50HZ Semi Automatic Liquid Filling Machine 1
