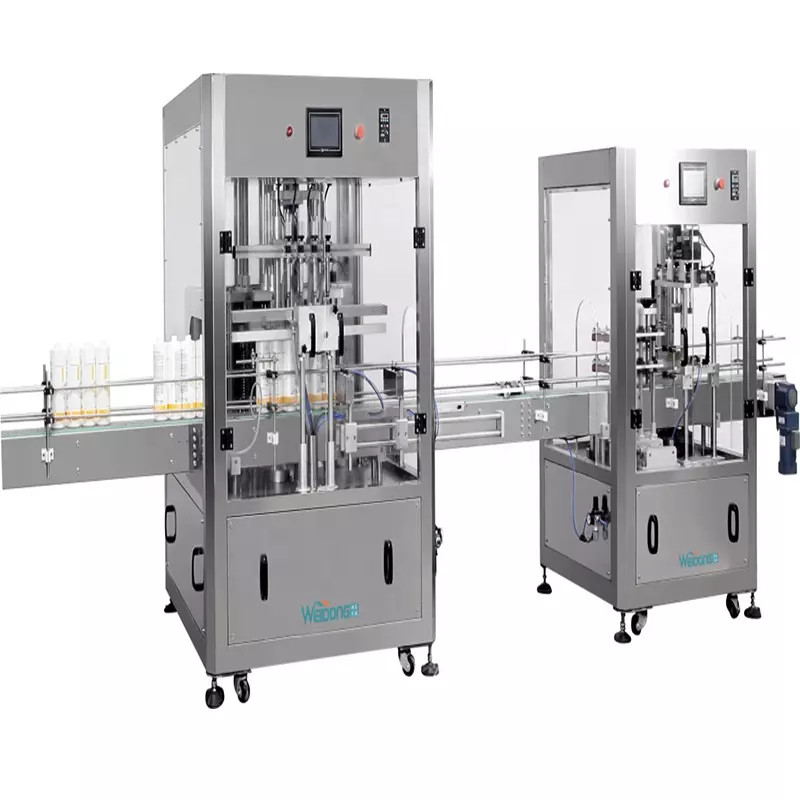

10-1000ml 50Hz Automated Filling Machine 220V For Juice Water

10-1000ml 50Hz Automated Filling Machine 220V For Juice Water

Product Details:

Place of Origin: Guangdong
Brand Name: Weidong
Certification: CE&ISO
Model Number: FMWD-2

Payment & Shipping Terms:

Minimum Order Quantity: 1-2 set
Price: USD 5500-9000/SET
Packaging Details: Wooden
Delivery Time: 5-10 days
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Type: Filling Machine Filling Volume: 10-1000ml
Filling Capacity: 1000BPH Certificate: ISO
Packing Material: Wooden Filling Heads: 4 Filling Heads
Condition: New Voltage: 380V
Highlight:

50Hz Automated Filling Machine

,

Juice Automated Filling Machine

,

220V Juice Filling Machine

Product Description



10-1000ml Automated Filling Machine 220V 50Hz 304 Stainless Steel For Juice Water





Product Description:



Filling machine adopts programmable logic controller (PLC) human and machine interface( HMI) technology ,equipped with imported photoelectric track switch from Korea .



Itis suitable for filling ointment products in the industries such as ointment ,oil products ,syrup,shampoo ,chemical and fruit juice etc.The filling nozzle will be automatically inserted into the bottle and carry out the filling and then rapidly ascend ,which can reduce the air bubbles .



The product integrates electric and pneumatic functions into one ,with reasonable design ,stable performance ,accurate quantity ,glass table surface ,automatic bottle feeding ,steady operation without noise ,electric speed control to the filling speed and filling volume and convenient maintenance and cleaning . The new type filling equipment is the best choice for the realization of automatic production .







The Characteristics :



1.with new -designed figure ,and compact structure

2..high productivity

3.The filling head can descend and fill automatically and then ascend quickly

4.The conveyor belt is driven by braking motor and it stops when filling conveyor

5.The filing machine runs lightly and fluently ,and it does not fill without bottle .

6.It can count the filling times automatically .

7.With diameter 900mm bottle filling machine .

product positioning :liquid filling paste filling machine cosmetic filling machine

Technical parameters:( We can customize the filling machine according to the different bottle , and filling volume.







Technical Specification:





Filling volume Filling speed Filling precision Productivity Air source
50-50ml Adjustable ≤±0.3% 500-1000b/h 0.4-0.8MPa
50-300ml Adjustable ≤±0.3% 500-1000b/h 0.4-0.8MPa
1300-500ml Adjustable ≤±0.3% 500-1300b/h 0.4-0.8MPa
600-1000ml Adjustable ≤±0.3% 400-1000b/h 0.4-0.8MPa







10-1000ml 50Hz Automated Filling Machine 220V For Juice Water 010-1000ml 50Hz Automated Filling Machine 220V For Juice Water 1








FAQ



Q: How can I ensure that I get high-quality machine?



A: As a manufacturer,we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing,assembling and testing.





Q: How long is your delivery time?



A: Generally it about 5-7 days if the goods are in stoce, or 15-20 days if the goods are out of stock.





Q: What is your terms of payment?



A: Payment< USD 1000, 100% in advance. Payment > USD 1000, 30% T/T in advance, balance before shippment.





Q: How about the warranty?



A: We offer 12 months maintenance period to the problems that caused by our design, manufacture, and material quality, and offer the relevant parts and effective services for free if the problems was caused by above reasons. We will offer a life-long technical support, after service for customers.



Q:What should I do if we are not able to operate the machine when we receive it?



A:Operation manual and video demonstration sent along with the machine to give instructions.



Q: How could I get the spares on machines?



A:We will send extra sets of spares and accessories (such as sensors, heating bars, gaskets, O rings, coding letters). Non-artificial damaged spares will be sent freely during 1 year's warranty.
