45KW Rustproof Dry Powder Mixing Machine Stable For Chemicals
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | Weidong |
| Certification: | CE&ISO9001 |
| Model Number: | 0906 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-7 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per months |
|
Detail Information |
|||
| Mixer Type: | Homogenizer | Material Processed: | Plastics, Chemicals, Food, Medicine |
|---|---|---|---|
| Range Of Spindle Speed: | 1-1400rpm | Weight: | 200kg |
| Voltage: | 220V | Power: | 45KW |
| Dimension: | 2.35*1.16*2.38m | Key Selling Points: | High Safety Level |
| Highlight: | 45KW Dry Powder Mixing Machine,Rustproof Dry Powder Mixing Machine,Stable Powder Machine Mixer |
||
Product Description

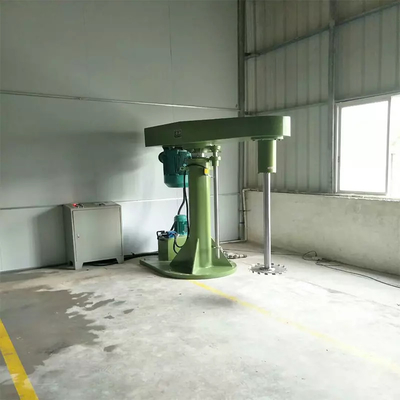

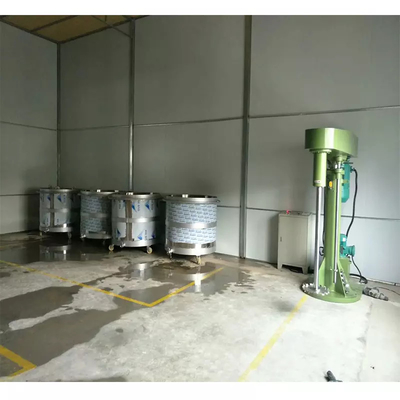

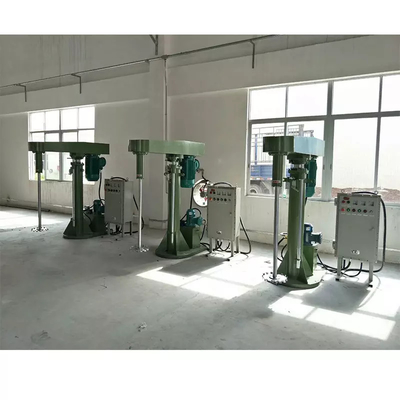

Dry Powder Mixing Machine For Shampoo Detergent Heating Mixing Tank
Production Discription:
Dispersion mixer can dissolve & mix liquid-liquid, liquid-solid materials.
With high speed running of blade, the strong shearing, crashing and friction force is generated.
The dissolving sawtooth blade is made of stainless steel.
The large stress forces break down the agglomerates into small particle size.
Design Highlights
1. It has clamp device to fix container when under work process.
2. This machine has hydraulic system, stable running, can lift up and down frequently.
3. Specially made hydraulic cylinder can realize oil-leakage free.
4. This machine is applicable for premixing & mixing materials for industrial production.
5. Speed control: With frequency inverter to realize various speed control.
6. The part contacting with materials is: SUS304 or SS316L.
7. Supporting frame: Q235-A.
8. Height adjustment: Hydraulic lifting up or customized.
Specification:
| Model | Capacity(L) | Power(kw) | Speed(rpm) | Disc dia(mm) | Stroke(mm) | Hydraulic power (kw) |
| WDS-2.2 | 100 | 2.2 | 0-1440 | 150 | 700 | 0.55 |
| WDS-4 | 200 | 4 | 0-1440 | 200 | 800 | 0.55 |
| WDS-7.5 | 400 | 7.5 | 0-1440 | 230 | 900 | 0.75 |
| WDS-11 | 500 | 11 | 0-1440 | 250 | 900 | 0.75 |
| WDS-15 | 700 | 15 | 0-1440 | 250 | 900 | 0.75 |
| WDS-22 | 1000 | 22 | 0-1440 | 350 | 1100 | 1.1 |
| WDS-30 | 1500 | 30 | 0-1440 | 400 | 1100 | 1.1 |
| WDS-37 | 1800 | 37 | 0-1440 | 400 | 1600 | 1.1 |
| WDS-45 | 2500 | 45 | 0-1440 | 450 | 1600 | 1.1 |
| WDS-55 | 3000 | 55 | 0-1440 | 500 | 1600 | 1.1 |
| WDS-75 | 4500 | 75 | 0-1200 | 550 | 1800 | 2.2 |
| WDS-90 | 6000 | 90 | 0-960 | 600 | 1800 | 2 |
