OBM Antirust Single Screw Pump , G Type Multifunctional Mini Screw Pump
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | Weidong |
| Certification: | CE&ISO9001 |
| Model Number: | WDP568 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 7-10 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Maximum Head: | 400M3/H | Motor: | 100% Copper Wire |
|---|---|---|---|
| Horsepower: | 37KW | Pressure: | 1.6Mpa |
| Customized Support: | OEM, ODM, OBM | Voltage: | 450V |
| Power: | 7.5kw, Electric | Outlet Size: | 8.2mm |
| Highlight: | OBM Single Screw Pump,Antirust Single Screw Pump,Multifunctional Mini Screw Pump |
||
Product Description

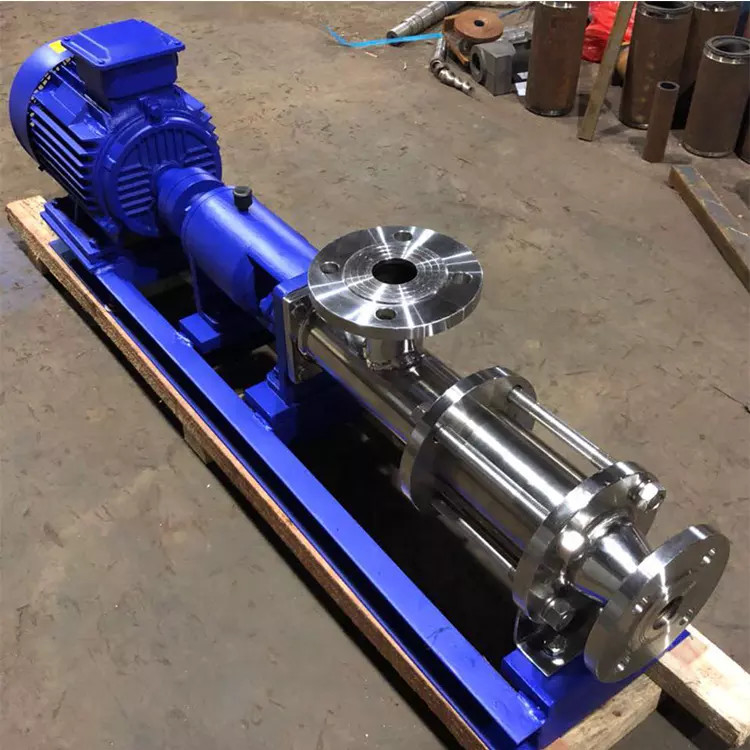

Auxiliary Equipment G Type Single Screw Pump Mini Screw Pump
Description:

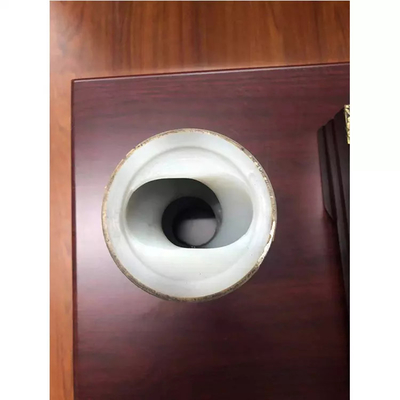

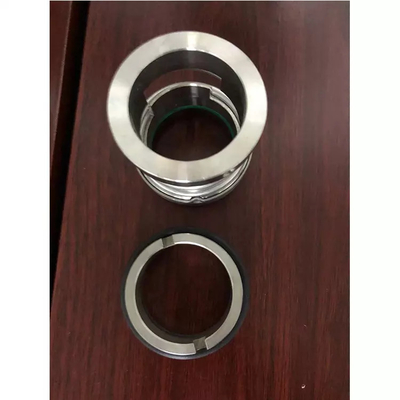

G single screw pump consists of suction, discharge, working part(Rotor and Stator), driving part, universal joint part seal assembly and bearing seat. The working part is composed of rotating eccentric rotor and stator. the rotor and stator have two contact points in every transverse section. These contact points from two sealing lines along the working parts of rotor(or stator). Thus comes into one or a few sealing chambers when the rotor rotating. The media entering the sealing chamber remove smoothly from suction end to discharge end along the sealing chamber. During the whole running, the pressure pulsation is very low which has no any effect upon the intrinsic construction of pumped media.
Pump Technical Parameters:
1. Flow: 0-150m3/h;
2. Head: 60-120m;
3. Power: 0.75-37kw;
4. Rotary speed: 500-960r/min;
5. Calibre: 20-135mm;
6. Temperature: -15-200°C.
Usual Models Specifications for Clients Choosing(More Details Pls Contact Us)
Specification:
| Model |
Speed (r/min) |
Flow (M3/h) |
Pressure (Mpa) |
Motor (KW) |
Head (m) |
Inlet (mm) |
Outlet (mm) |
Allowable particulate size (mm) |
Allowable fibre length (mm) |
| G20-1 | 960 | 0.8 | 0.6 | 0.75 | 60 | 25 | 25 | 1.5 | 25 |
| G25-1 | 960 | 2 | 0.6 | 1.5 | 60 | 32 | 25 | 2 | 30 |
| G25-2 | 960 | 2 | 1.2 | 2.2 | 120 | 32 | 25 | 2 | 30 |
| G30-1 | 960 | 5 | 0.6 | 2.2 | 60 | 50 | 40 | 2.5 | 35 |
| G30-2 | 960 | 5 | 1.2 | 3 | 120 | 50 | 40 | 2.5 | 35 |
| G35-1 | 960 | 8 | 0.6 | 3 | 60 | 65 | 50 | 3 | 40 |
| G35-2 | 960 | 8 | 1.2 | 4 | 120 | 65 | 50 | 3 | 40 |
| G40-1 | 960 | 12 | 0.6 | 4 | 60 | 80 | 65 | 3.8 | 45 |
| G40-2 | 960 | 12 | 1.2 | 5.5 | 120 | 80 | 65 | 3.8 | 45 |
| G50-1 | 960 | 20 | 0.6 | 5.5 | 60 | 100 | 80 | 5 | 50 |
| G50-2 | 960 | 20 | 1.2 | 7.5 | 120 | 100 | 80 | 5 | 50 |
| G60-1 | 960 | 30 | 0.6 | 11 | 60 | 125 | 100 | 6 | 60 |
| G60-2 | 960 | 30 | 1.2 | 15 | 120 | 125 | 100 | 6 | 60 |
| G70-1 | 720 | 45 | 0.6 | 11 | 60 | 150 | 125 | 8 | 70 |
| G70-2 | 720 | 45 | 1.2 | 18.5 | 120 | 150 | 125 | 8 | 70 |
| G85-1 | 720 | 65 | 0.6 | 15 | 60 | 150 | 150 | 10 | 80 |
| G105-1 | 500 | 100 | 0.6 | 22 | 60 | 200 | 200 | 15 | 110 |
| G135-1 | 400 | 150 | 0.6 | 37 | 60 | 250 | 250 | 20 | 150 |
