Complete Fully Automatic Fresh Fruit Juice Filling Machine Capping Machinery Sealing treament
Product Details:
| Place of Origin: | Guangzhou,China |
| Brand Name: | Weidong |
| Certification: | CE&ISO9001 |
| Model Number: | WD-GZJ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $80000-85000/a set |
| Packaging Details: | Packed in plastic and wooden case, seaworthy wooden case. Standard export wooden case packaging, fit for multiple handing and long distance marine shipping. |
| Delivery Time: | 5-8workday |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50units/month |
|
Detail Information |
|||
| Automatic Grade: | Automatic | Voltage: | 220 / 380 V, 380V 50HZ |
|---|---|---|---|
| Core Components: | Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine | Applicable Industries: | Manufacturing Plant, Pharmaceutical |
| Capacity: | 80-600 Bottles/min | Power: | 35-55 Kw |
| Machinery Capacity: | 12000BPH, 16000BPH | Weight: | 6500 Kg |
| Filling Accuracy: | ±2% | Type: | Filling Machine |
Product Description
Complete Fully Automatic Fresh Fruit Juice Filling Machine Filling Machinery Sealing Treament

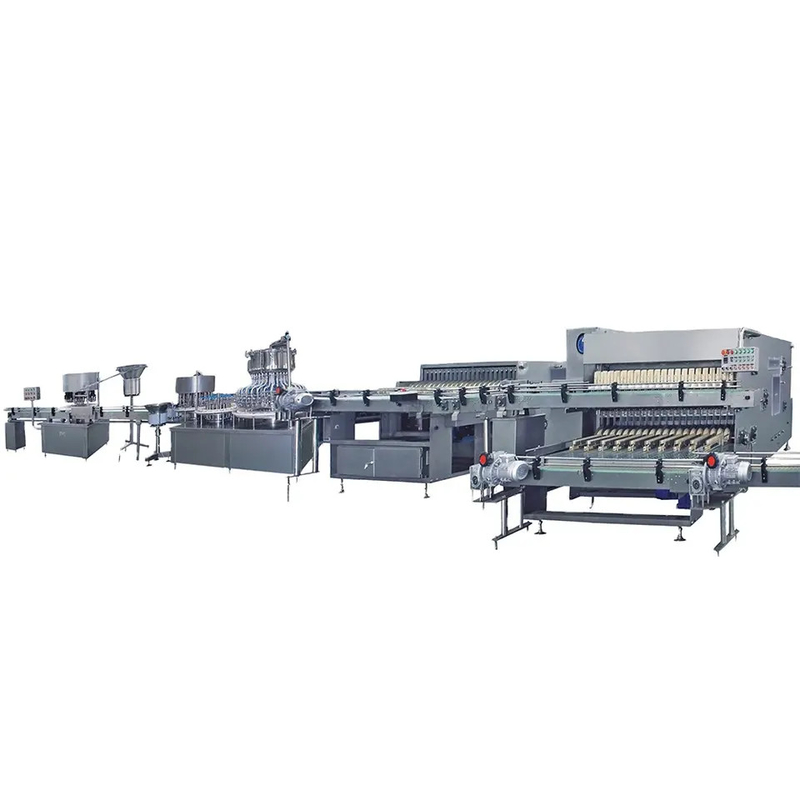

Main Structure:
1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing pump.
2. Filling machine: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.

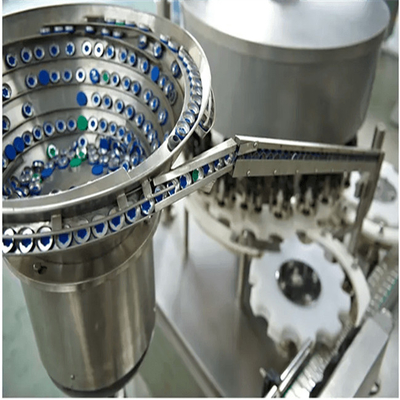

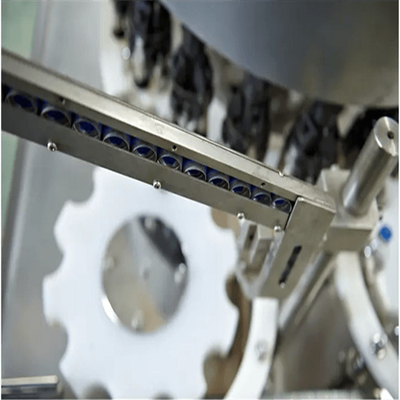

3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.
| Item | Techinical Parameter(Automated Filling Machine) | |||
| Model | WD50/150-120 | WD50/500-200 | WD50/500-300 | WD50/500-600 |
| Applied Bottle Size | 50ML,100ML,250ML,500ML | |||
| Production Capacity | 80-120 Bottle/min | 120-200 Bottle/min | 200-300 Bottle/min | 300-600 Bottle/min |
| Power | 35KW | 37KW | 45KW | 55KW |
| Compressed Air Consumption | 4m³/h(.06MPa) | 5m³/h(.06MPa) | 6m³/h(.06MPa) | 7m³/h(.06MPa) |
| Water Consumption |
Tap water:200ml/bottle Purified water:80ml/bottle |
|||
| Overall Size |
17800*6000*2300mm |
19000*6000*2300mm |
24000*7000*2300mm |
24000*7000*2300mm |
Washing Part
1. Into bottle way is air conveyor direct connection with Bottle dial .
2. All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
3. 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4. 304/316 stainless steel washing pump make the machine more durable .
Filling Part
1. During filling juice ,we will make a cover installed on the filling valve, avoiding the fruit pulp return inside reflux pipe to block the pipe.
2. Filling valve and bottle lifter uses adopts German Igus bearings which are corrosion-resistant and maintenance-free.
3. By install CIP cleaning cups, the filling machine can realize online CIP cleaning 4.During filling process, there is no reflux of product, avoiding blockage of product.
Capping Part
1. Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
2. All 304/316 stainless steel construction
3. No bottle no capping
4. Automatic stop when lack of bottle
5. Capping effect is stable and reliable, Defective rate ≤0.2%
FAQ
1. Can you guarantee your quality if we order on you ?
Of course.Best quality is our principle all the time.You can be assured on our production.
2.What should I do if we are not able to operatethe the machine when we receive it?
Operation manual guides you the installation.Besides, we haveprofessional after-sale groupto customer 's site to solve any problems.weprovide 7*24 hours on-line technical support.
3.How could I get the spares on machines?
We will send extra sets of easy broken spares andaccessories likeo ring etc.Non-artificial damagedspares will be sent freelyduring 1 year 's warranty.
4.Can this machine fill paste or cream ?
The spout pouch filling machine can fill any liquidas juice,beverage,soy milk,cocktail and variouscondiments like tomato sauce,bean sauce etc.
5.How to maintain such a machine ?
Please clean every part after filling thus can givelong using life of machine and make a carefullyclean 3 times a year.
