300ml Automated Filling Machine For Aerosol Automatic Filling Production Line
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | Weidong |
| Certification: | CE&ISO9001 |
| Model Number: | WDQW1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10 SETS per month |
|
Detail Information |
|||
| Production Speed: | 40-70 Bottles/min | Filling Volume: | 20-300ml |
|---|---|---|---|
| Repetitive Filling Accuracy: | ±1% | Machinery Test Report: | Provided |
| Applicable Vessel Size: | Diameter |
Key Selling Points: | Easy To Operate |
| Compressed Air Pressure: | 0.7-0.85mpa | After-sales Service Provided: | Online Support |
| Gas Consumption: | 5m 3/ Min | Power Supply: | AC380V / 50Hz /1.1kw |
| Highlight: | 300ml Automated Filling Machine,Aerosol Automated Filling Machine |
||
Product Description
Automated Aerosol Filling Machine For Aerosol Automatic Filling Production Line
Product Description:

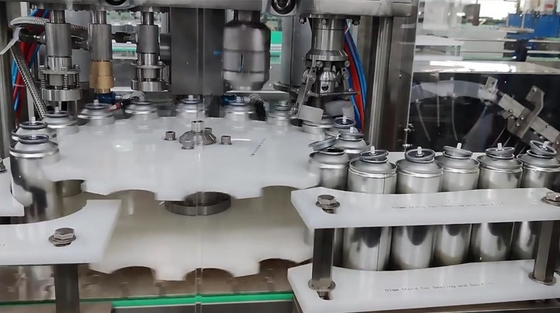

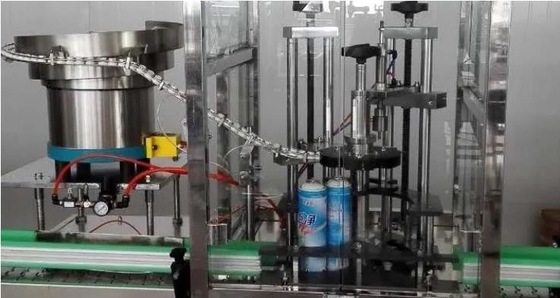

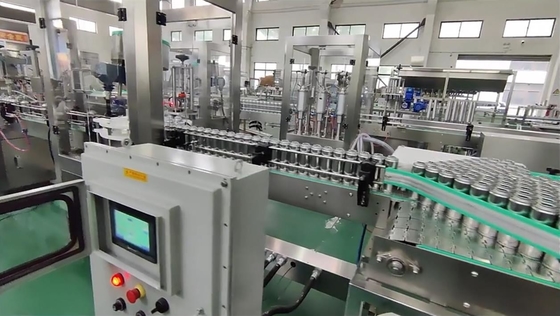

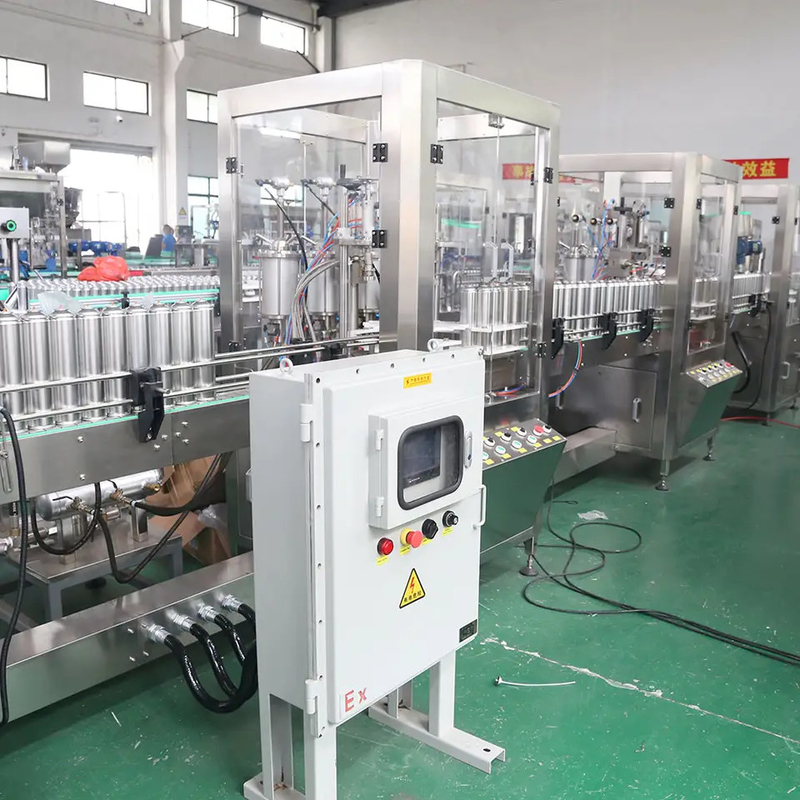

The automatic filling production line of high-speed aerosol is composed of double rotary table 12 head Liquid filling machine, valve inserting machine, 10 head Gas filling machine, water bath machine, weighing machine, actuator placing machine, outer cap pressing machine, booster pump, conveyor belt, etc.
The production line has the characteristics of high precision and high efficiency. It can be filled with international 1 inch filling specifications, tinplate, aluminum pipe, and suitable for filling medium oil, water, emulsion solvent and other medium viscosity materials. It is suitable for filling various kinds of propellants such as DME, LPG, 134a, N2, CO2 and so on. It can be used for liquid filling in chemical, daily chemical, food and pharmaceutical industries.
Main Features:
1. Stable and reliable operation, few faults and long service life.
2. High efficiency and labor saving.
3. High precision and stable filling quality.
4. SMC pneumatic control components are mainly used, and the sealing ring adopts foreign high-quality products, because it has good reliability and wear resistance.
5. The conveyor belt of the production line adopts explosion-proof motor, and the others are driven by compressed air, which has high safety.
6. One click drop function greatly improves the speed of production and mold change.
Technical Parameter:
| Production speed | 40-70 bottles / min |
| Filling volume | 10-1200ml |
| Repeat filling accuracy | ± 1% |
| Applicable vessel size | diameter <t> 35- <t> 73. 85-310mm 1 inch tank mouth aerosol tank |
| Compressed air pressure | 0.7-0.85mpa |
| Power supply | AC380V / 50Hz / 1.1kw |
| Machinery Test Report | Provided |
