130 Bottles / Min 1200ml Automated Filling Machine Aerosol Filling Equipment
Product Details:
Place of Origin: | Guangzhou |
Brand Name: | Weidong |
Certification: | CE |
Model Number: | WD-028 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | USD 50000/Set |
Packaging Details: | Wooden |
Delivery Time: | 5-10 Days |
Payment Terms: | T/T |
Supply Ability: | 10 Sets per month |
Detail Information |
|||
Filling Volume: | 10-1200ml | Filling Material: | Oil |
---|---|---|---|
Filling Accuracy: | ± 1% | Power Supply: | AC380V / 50Hz / L.lkw |
Production Speed: | 90-130 Bottles / Min | Gas Consumption: | 3 3/ Min |
Certification: | ISO | Suitable For: | Liquid |
Highlight: | 1200ml Automated Filling Machine,130 Bottles / Min Automated Filling Machine,Aerosol Filling Equipment |
Product Description
Automated Filling Machine High Speed Aerosol Automatic Filling Production Line
Product Description

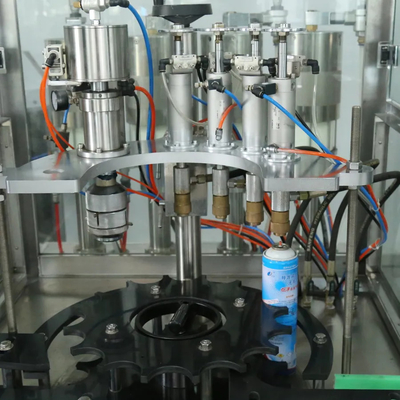

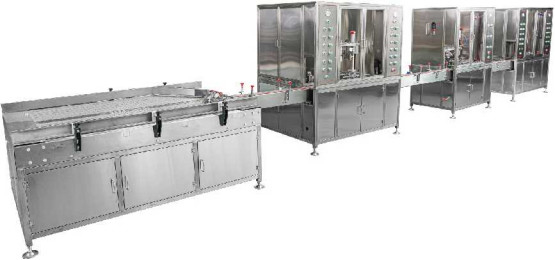

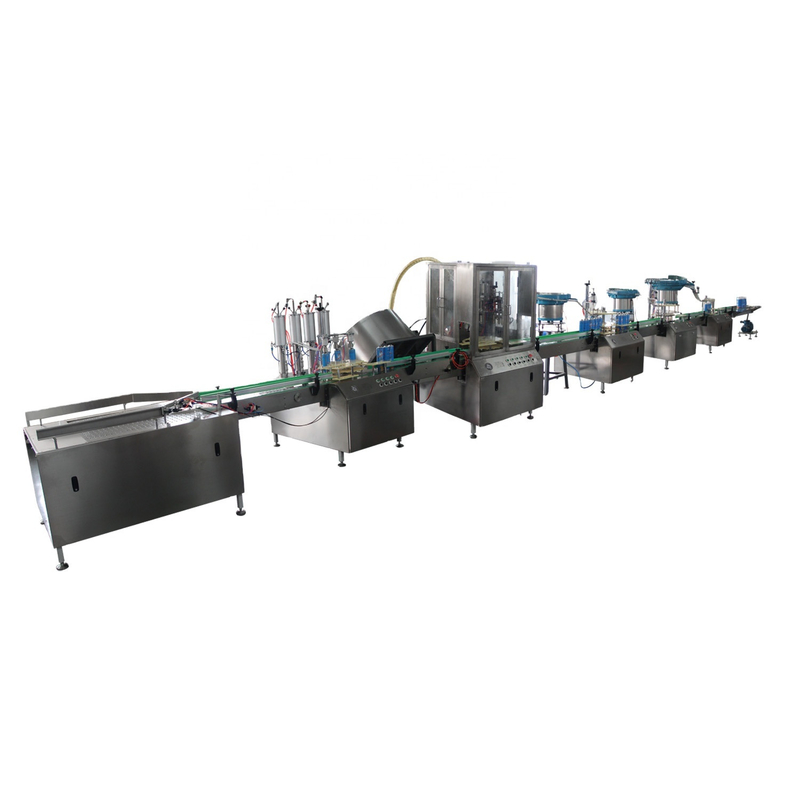

The automatic aerosol filling production line is composed of rotary table type four head or six head liquid filling machine, rotary table type crimping, four head gas filling, water bath machine, weighing machine, actuator machine, outer cover pressing machine, booster pump, conveyor belt, etc.
Purpose
The production line has the characteristics of high accuracy and high efficiency. It can be filled with international 1 inch filling specifications, tinplate, aluminum cans, and medium viscosity materials for filling oil, water and emulsion solvents. It is suitable for filling various kinds of propellants such as DME, LPG, 134a, N2, C02 and so on. It can be used for liquid filling in chemical, daily chemical, food and pharmaceutical industries.
Main Feature
1. Stable and reliable operation, few faults and long service life.
2. High efficiency and labor saving.
3. High precision and stable filling quality.
4. SMC pneumatic control components are mainly used, and the sealing ring adopts foreign high-quality products, because it has good reliability and wear resistance.
5. The conveyor belt of the production line adopts explosion-proof motor, and the others are driven by compressed air, which has high safety.
Main technical parameters:
- Bottle production speed: 90-130 bottles / min
- Filling volume: 10-1200ml
- Repeat filling accuracy: ± 1%
- Applicable vessel size: diameter <t> 35- <t> 73. 85-310mml inch tank mouth aerosol tank
- Compressed air pressure: 0.7-0.85mpa
- Gas consumption: 3 3/ min
- Power supply: AC380V / 50Hz / l.lkw
