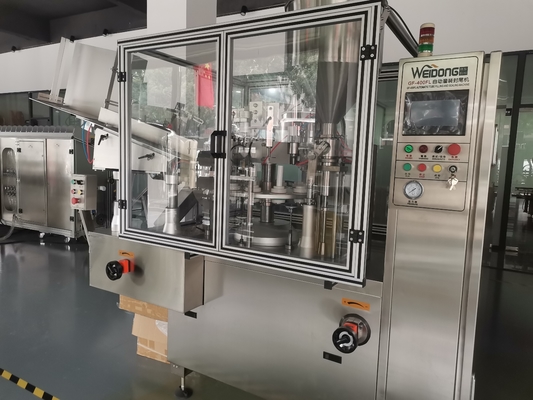

200kg Automatic Tube Filling And Sealing Machine With Air Pressure 0.4-0.6Mpa Power Supply 220V 50Hz
Product Details:
| Place of Origin: | Guangzhou |
| Brand Name: | Weidong |
| Certification: | CE&ISO9001 |
| Model Number: | WD-2301 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 20 SET PER MONTH |
|
Detail Information |
|||
| Power Supply: | 220V/50Hz | Material: | Aluminum, Plastic, Laminated |
|---|---|---|---|
| Sealing System: | Hot Air | Dimension: | 1500*1000*1800mm |
| Tube Size: | 10-50mm | Operation Mode: | Automatic |
| Weight: | 200kg | Air Pressure: | 0.4-0.6Mpa |
| Highlight: | 0.6Mpa Tube Filling And Sealing Machine,Automatic Tube Filling And Sealing Machine |
||
Product Description
Product Description:
200kg Filling And Sealing Machine With Air Pressure 0.4-0.6Mpa Power Supply 220V/50Hz
A Tube Filling and Sealing Machine is an automated machine used in the manufacturing industry to fill and seal tubes with various substances such as creams, gels, pastes, and liquids.
The machine automates the process of filling the tubes with the product and sealing them to prevent contamination and preserve the product's quality. It works by filling the tubes with the product using a volumetric or a piston filling system. Therefore, the tube is sealed with a hot air, ultrasonic, or high-frequency sealing process, depending on the type of tube and the product being packaged.
This kind of machine finds a wide application in various industries such as cosmetics, pharmaceuticals, and food due to its capability to package products like toothpaste, ointments, creams, adhesives, sauces, ketchup, and mayonnaise.
Features:
- Product Name: Tube Filling and Sealing Machine
- Control System: PLC
- Tube Size: 10-50mm
- Dimension: 1500*1000*1800mm
- Sealing System: Hot Air
- Tube Length: 50-250mm
- Function: Tube filling machine, Tube filling and sealing machine, Filling machine
Technical Parameters:
| Property | Specification |
|---|---|
| Sealing System | Hot Air |
| Dimension | 1500*1000*1800mm |
| Operation Mode | Automatic |
| Tube Size | 10-50mm |
| Weight | 200kg |
| Control System | PLC |
| Tube Length | 50-250mm |
| Power Supply | 220V/50Hz |
| Air Pressure | 0.4-0.6Mpa |
| Filling Accuracy | ≤±1% |
Applications:
Tube filling and sealing machines have a wide range of applications in various industries where products need to be packaged in tubes. These machines offer a fast, efficient, and cost-effective way to package products, while also ensuring product quality and safety.
The cosmetics industry makes extensive use of tube filling and sealing machines for packaging items such as lotions, creams, gels, and shampoos. Similarly, tube filling and sealing machines are used in the pharmaceutical industry to package products like ointments, pastes, and gels.
In the food industry, these machines are used to package sauces, ketchup, mayonnaise, and other food products that require airtight packaging. In the adhesive industry, they are used to package products like glue, sealants, and other adhesives. Furthermore, the chemical industry and the personal care industry also make use of tube filling and sealing machines to package their respective products.
Support and Services:
We provide full technical support and service for our tube filling and sealing machine. Our team of qualified engineers and technicians can assist you with installation, commissioning, and maintenance of the machine. We also provide on-site service and support to ensure the smooth and efficient operation of the machine. We can also provide spare parts and consumables for the machine when needed.
In addition, our team can also provide technical training for operators and maintenance personnel. We can provide troubleshooting and diagnostic services to isolate and repair any issues quickly and efficiently. We are committed to providing the highest quality of service to ensure maximum performance and reliability of our tube filling and sealing machine.
Packing and Shipping:
The Tube Filling and Sealing Machine will be packaged in a cardboard box, with foam inserts to protect the components during transportation. The box should be clearly labeled with the customer's name and address, as well as the contents of the package. Once the machine is packaged, it will be shipped via a reliable carrier, such as UPS or FedEx.
