6.5m3/Min Aerosol Automatic Liquid Filling Line Low Consumption

6.5m3/Min Aerosol Automatic Filling Production Line Low Consumption Durable Easy To Operate

Product Description:

The high-speed aerosol automatic filling production line consists of multiple components.

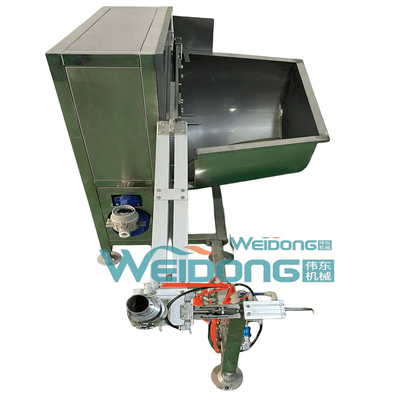

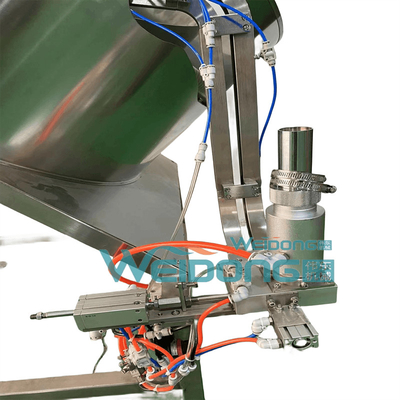

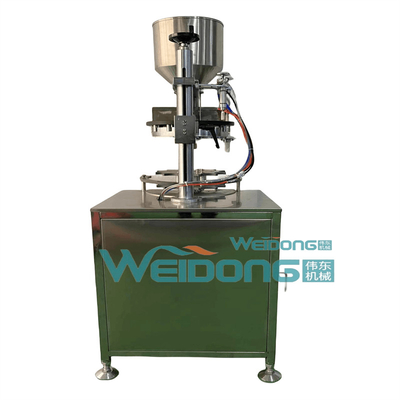

These components include double rotary table 12 head liquid filling machine, valve inserting machine, 10 head gas filling machine, water bath machine, weighing machine, actuator placing machine, outer cap pressing machine, booster pump and conveyor belt.

Altogether, the production line is capable of completing the entire process quickly and efficiently.



Features:

Stable and Reliable Operation

The machine features an impressively long service life and few faults, owing to its stable and reliable operation. It also has a high efficiency and can greatly save on labor, making it a highly efficient and beneficial device.

High Precision and Quality

The machine is designed with high precision, making for a much more stable filling quality. Additionally, the main components are SMC pneumatics and the sealing ring is made with foreign-made products, as they are notable for their high reliability and good wear resistance.

Safe Production Line

The conveyor belt associated with the production line is designed with an explosion-proof motor, while the others are driven by compressed air, adding an extra layer of safety. Furthermore, this machine also has a one click drop function, which drastically speeds up the production and also helps with mold changing.



Technical Parameters:

Production Speed and Filling Volume

This machine can provide a production speed of up to 70 bottles per minute, and is capable of filling containers from 10ml up to 1200ml in size.

Repeat Filling Accuracy

The repeat filling accuracy is impressive, with an accuracy of ±1%.

Applicable Vessel Size

This machine can be used with vessels with a diameter of 35-73.85mm and a mouth of 310mm and/or 1 inch tanks.

Compressed Air Pressure

The required compressed air pressure ranges from 0.7-0.85mpa.

Gas Consumption

The gas consumption is an efficient 5m3/min.

Power Supply

The required power supply for this machine is AC380V/50Hz/1.1kw.

Applications:

Our production line has excellent precision and efficiency. It can be designed to fill bottles according to international 1 inch standards, and can be adapted to use various materials including tinplate, aluminum and more.

The production line is able to fill medium viscosity liquids, from oil and water to solvents and emulsions.

Furthermore, it can even be used to fill various types of propellants, like DME, LPG, 134a, N2, and CO2.

In short, our production line can be used for liquid filling in a variety of industries, including chemical, daily chemical, food and pharmaceuticals.



Customization:



Packing and Shipping:

The Automated Filling Machine is securely packaged with a shrink-wrapped box and an inner cushioning material. It is then packaged in an outer carton that is strong enough to protect the product from any external damage during the shipping process.

The Automated Filling Machine is shipped using a reliable carrier. All components of the machine are securely packaged in the box and the carton. The outer carton is then securely sealed and labeled with the shipment information.

The Automated Filling Machine is shipped with a tracking number and insurance to ensure that the shipment is delivered safely and in a timely manner.
