High Accuracy Cosmetic Liquid Filling Machine 1 Year Warranty 70pcs / Min
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | weidong |
| Certification: | CE&ISO9001 |
| Model Number: | QWGAS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Reasonable |
| Packaging Details: | Wooden |
| Delivery Time: | 10-15days |
| Payment Terms: | T/T |
| Supply Ability: | 10 per month |
|
Detail Information |
|||
| Dimension: | 30500*4800*2550 Mm | Production Speed: | 40-70 Bottles / Min |
|---|---|---|---|
| Compressed Air Pressure: | 0.7-0.85mpa | Maintenance: | Low |
| Control System: | Programmable Logic Controller | Product Name: | Aerosol Automatic Filling Production Line |
| Warranty: | 1 Year | ||
| Highlight: | High Accuracy Cosmetic Liquid Filling Machine,Cosmetic Liquid Filling Machine 70pcs / Min |
||
Product Description
Reasonable High Accuracy Cosmetic Liquid Filling Machine 1 Year Warranty
Product Description:

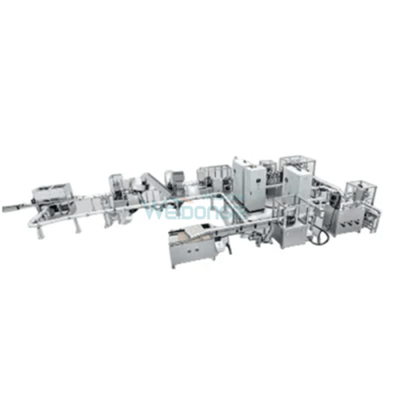

The high-speed aerosol automatic filling production line is a complete production system which comprises multiple machines. It includes a double rotary table 12 head liquid filling machine, a valve inserting machine, a 10 head gas filling machine, a water bath machine, a weighing machine, an actuator placing machine, an outer cap pressing machine, a booster pump, and a conveyor belt.

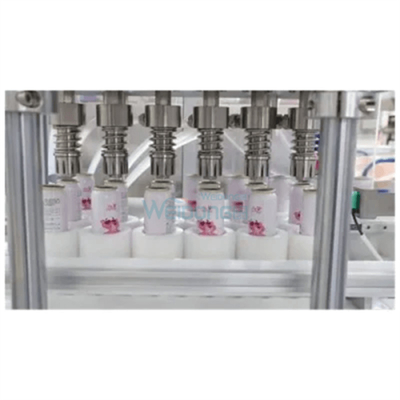

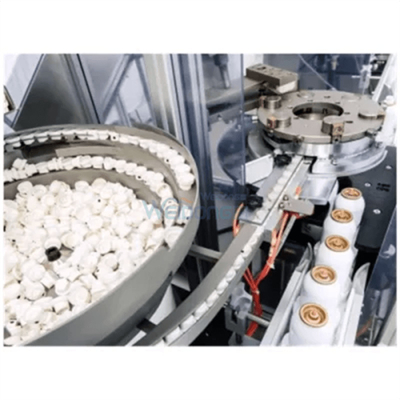

The double rotary table 12 head liquid filling machine is designed for filling liquids into aerosol cans. The valve inserting machine is used to insert a valve on the top of the aerosol can. The 10 head gas filling machine works at high speed and is able to fill gas quickly and accurately. The water bath machine is used to detect any leaks on the can. The weighing machine is responsible for accurately controlling the weight of the aerosol can. The actuator placing machine is used to set the aerosol actuator in place. The outer cap pressing machine offers the function of pressing the outer cap onto the aerosol can. The booster pump is for providing a high pressure of gas for the system. Last but not least, the conveyor belt is essential as it provides a link in the assembly line.
Features:
The operation of this production line is stable and reliable, with few faults and long service life. Meanwhile, it has high efficiency and labour-saving features, because it can achieve high precision and stable filling quality. To ensure the reliability and wear resistance, SMC pneumatic control components are mainly used, and foreign high-quality sealing rings are adopted. Furthermore, its conveyor belt is powered by explosion-proof motors, and all other components are driven by compressed air, making it safer to use. On top of that, the one click drop function greatly improves the production speed and the efficiency of mold change.
Technical Parameters:
Production Speed
This machine has a production speed of 40 to 70 bottles per minute.
Filling Volume
The filling volume it offers ranges from 10 to 1200ml.
Repeat Filling Accuracy
It has a repeat filling accuracy of ± 1%.
Applicable Vessel Size
It is applicable for vessels with a diameter of
Compressed Air Pressure
The compressed air pressure for use with this machine is 0.7 to 0.85mpa.
Gas Consumption
The gas consumption rate is 5m3 per minute.
Power Supply
The power supply for the machine is AC380V/50Hz/l.lkw.
Applications:
The production line is known for its high accuracy and efficiency. It is built to be able to fill bottles according to international 1 inch filling specifications, with tinplate, aluminum pipe, and is suitable for filling medium viscosity materials such as oil, water, emulsion solvent, etc. It is also suitable for numerous propellants, i.e. DME, LPG, 134a, N2, and CO2. Furthermore, it is applicable for liquid filling in industries like chemical, daily chemical, food and pharmaceutical.
Customization:
Weidong Automated Filling Machine is a reliable and efficient cosmetic liquid filling machine with Certification of CE&ISO9001. This filling machine is guaranteed to have a minimum order quantity of 1 with a price that is negotiable. It is packaged in wooden boxes and shipped within 10-15 days. The payment terms for this product are T/T. The supply ability is 10 per month and the power supply is AC220V/50HZ/6.5KW. The applicable vessel size is Diameter 35-73. 85-310mm 1 Inch Tank Mouth Aerosol Tank. The control system is a Programmable Logic Controller (PLC). This Automated Filling Machine has a 1 year warranty and a gas consumption of 6.5m 3/ Min.
Packing and Shipping:
Packaging and Shipping for Automated Filling Machine:
- The Automated Filling Machine is packaged in a sturdy cardboard box
- The box contains all necessary components and instructions
- The box is secured with packing tape
- The package is shipped via an insured, reliable courier service
