Automatic Filling Perfume Production Equipment Vacuum Practical
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | Weidong |
| Certification: | CE&ISO9001 |
| Model Number: | WD-gz01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 5-7 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 Set/Sets per Month |
|
Detail Information |
|||
| Working Principle: | Vacuum | Applicable Bottle Height: | ≤250mm |
|---|---|---|---|
| Filling Precision: | 1% | Filling Volume: | 1000ml |
| Applicable Bottle Diameter: | 45-20mm | After Warranty Service: | Online Support |
| Throughput: | 50cans/min | Type: | Semi-autmatic |
| Highlight: | Automatic Perfume Production Equipment,Vacuum Perfume Production Equipment,Practical Automatic Perfume Filling Machine |
||
Product Description

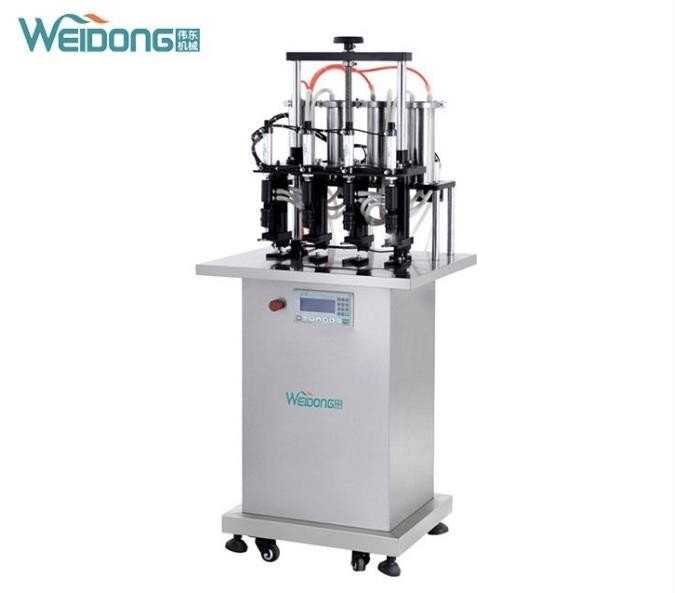

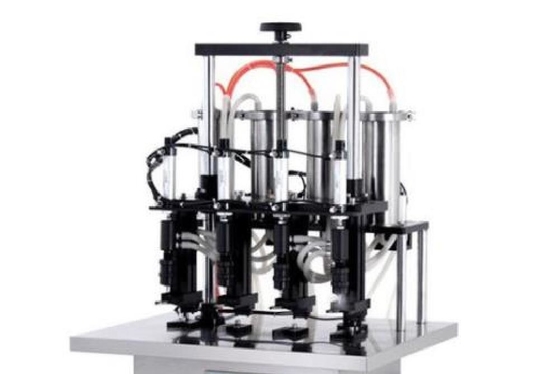

Perfume Production Equipment Vacuum Automatic Four Head Perfume Filling Machine
Product introduction:
Vacuum automatic filling machine for perfume. The machine adopts advanced control and monitoring system, high automation, humanization, perfect sealing quality and stability. Vacuum system can meet the filling precision for different specifications of the bottle size. It is widely used in cosmetics, medicine, chemical industry and food industry etc.
The machine adopts the latest technology, vacuum type liquid filling machine, with four heads. It can automatically fill perfumes of different capacities, also applicable to fill various cosmetic products and medicines, etc.
Vacuum Automatic Filling Machine adopts advanced ultrasonic atomization technology and international patent high-speed filling technology, which can automatically produce different kinds of aerosols, such as liquid perfume, cream spray and other Nano cosmetics.
With manual filling, there are many hand operations, but with the automatic perfume filling machine, it can automatically achieve the effect of high precision, fast speed, low cost.
Specification:
| Bottle height | ≤250mm |
| Maximum diameter of bottle mouth | ≤20mm |
| Minimum diameter | ≥4.5mm |
| Adjustable liquid level (from the bottle mouth) | 26-50mm |
| Boundary dimensions (excluding liquid storage bottle) | 660×470×1330mm |
| Adapt to ambient temperature | 0-30℃ |
| Power | AC 380V |
| Vacuum pump | XD-020 (explosion-proof 2X-4A) |
| Air extraction rate | 5.5L/s (explosion-proof type 4) |
| Motor power | 0.75KW |
