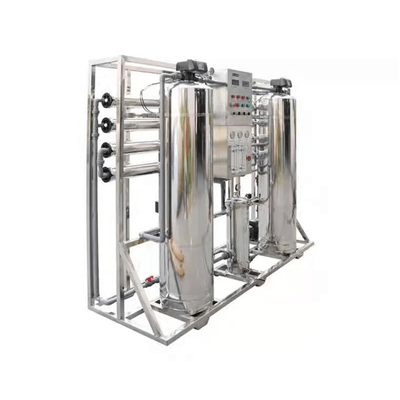

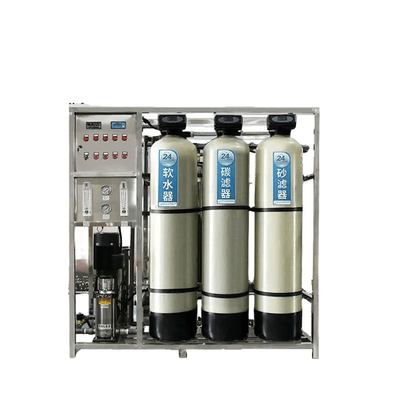

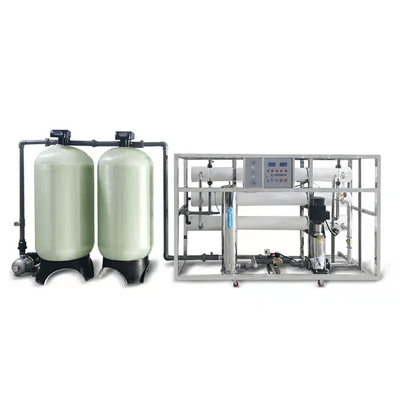

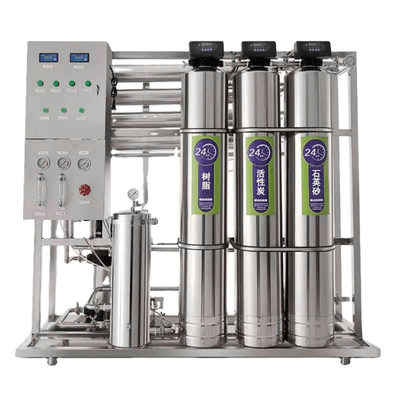

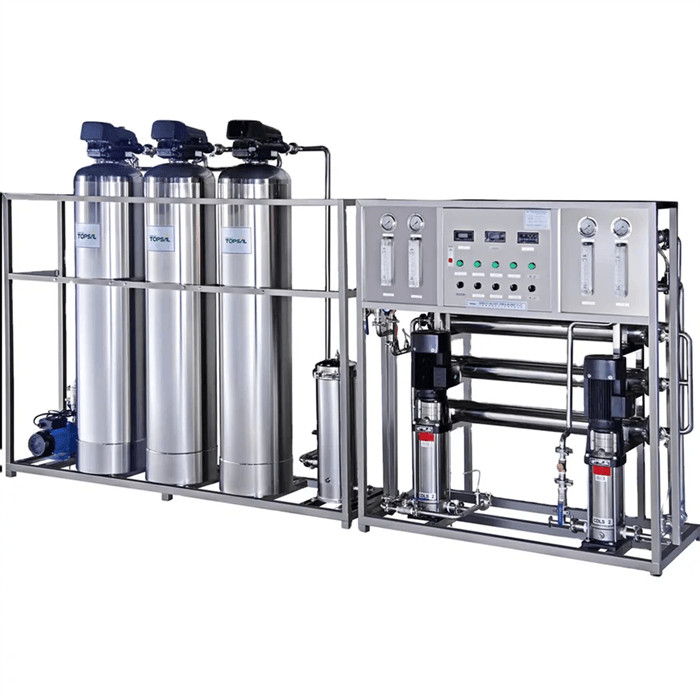

40 Cubic Meter Industry Water Reuse Project RO Underground Water Desalination Plant Reverse Osmosis Treatment System
Product Details:
Place of Origin: | Guangzhou,China |
Brand Name: | Weidong |
Certification: | CE&ISO9001 |
Model Number: | WD-RO500-20000 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | $50000-70000/A SET |
Packaging Details: | Packed in plastic and wooden case, seaworthy wooden case. Standard export wooden case packaging, fit for multiple handing and long distance marine shipping. |
Delivery Time: | 5-8workday |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50units/month |
Detail Information |
|||
Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Core Components: | Motor, PLC |
---|---|---|---|
Weight: | 50KG | Power: | 220/380V |
Productivity: | 2000L/Hour | Capacity Of Pure Water: | 250-100 000 LPH |
Conductivity Of Raw Water: | ≤400μs | Conductivity Of Pure Water: | ≤10μ |
Water Recovery Rate: | 60-75% | Desalting Rate: | 95-99% |
Product Description
40 Cubic Meter Industry Water Reuse Project RO Underground Water Desalination Plant Reverse Osmosis Treatment System
Performances and Features
1. This system occupy little space, easy to operate , wide application range;
2. When used for disposing industrial water, the reverse osmosis device does not consume large amounts of acids and there is no secondary pollution. In addition, its operation cost is low;
3. Reverse osmosis desalting rate≥99%, machine desalting rate≥97%, 98% of organic matters, colloids and bacteria can be removed;
4. Finished water under good electric conductivity, one stage ≤10μm/cm, two stage around 2-3μm/cm, EDI≤0.5μm/cm(based on raw water≤300μm/cm);
5. High operation automation degree. It is unattended .The machine will automatically stop in case of water sufficiency and
automatically start in case of no water, timed flushing of front filtering materials by automatic controller.Automatic flushing of reverse osmosis film by IC microcomputer controller, online display of raw water and pure water electric conductivity;
6. Imported parts account for over 80%.
Technical parameter
Model |
Productivity (T/H) |
Motor power (KW) |
Recovery rate (%) |
One Stage Finished water conductivity (μS/CM) |
Two Stage Finished water conductivity (μS/CM) |
EDI System water conductivity (μS/CM) |
Raw water conductivity (μS/CM) |
WD-RO-500L | 0.5 | 0.75 | 50 | ≤10 | 2-3 | ≤0.5 | ≤300 |
WD-RO-1000L | 1 | 2.2 | 50 | ≤10 | 2-3 | ≤0.5 | ≤300 |
WD-RO-2000L | 2 | 4.0 | 50-60 | ≤10 | 2-3 | ≤0.5 | ≤300 |
WD-RO-3000L | 3 | 5.5 | 55-65 | ≤10 | 2-3 | ≤0.5 | ≤300 |
WD-RO-5000L | 4 | 7.5 | 55-65 | ≤10 | 2-3 | ≤0.5 | ≤300 |
WD-RO-6000L | 5 | 7.5 | 60-70 | ≤10 | 2-3 | ≤0.5 | ≤300 |
WD-RO-10000L | 10 | 11 | 60-70 | ≤10 | 2-3 | ≤0.5 | ≤300 |
WD-RO-20000L | 20 | 15 | 65-75 | ≤10 | 2-3 | ≤0.5 | ≤300 |
Water treatment production line
Raw water tank→Raw water pump→Sand filter→Carbon filter→Softener→Storage Tank→Security filter→Two stage RO equipment→EDI Storage tank→EDI System→EDI pure water tank→Two-stage RO system storage tank→ Pure water pump→UV sterilize
Function of each part of water treatment plant
1. feed water pump pump-- provide the pressure to quartz sand filter/active carbon filter
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6. High pressure pump-- Provide the high pressure to RO membrane
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
8. UV sterilizer or ozone generator--- kill bacteria
We are using high quality accessories, parts and equipments
Feature and advantages:
1. System can produce water continuously and high degree automation.
2. No need chemical to regenerate, easy operation and maintenance.
3. Core components of ro system are imported USA membranes.
4. Automatic switch on when low water level, and switch off when high water level
5. System flushes RO membranes automatically, reducing membranes polluted speed.
6. Water shortage protection for multi-stage pump
7. Product water conductivity meter can monitor water quality online continuously.
8. Low operation cost and long life span
