SUS304L 1000 kg/h Dry Powder Mixing Machine Efficient Three Roll Mill Machine
Product Details:
| Place of Origin: | guangdong |
| Brand Name: | Weidong |
| Certification: | CE&ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 set |
|---|---|
| Price: | USD 8560-10000/Set |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5-7 Days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets Per Month |
|
Detail Information |
|||
| Key Words: | Dry Powder Mixing Machine | Output (kg/h): | 100 - 1000 Kg/h |
|---|---|---|---|
| Material: | SUS304, SUS304L, SUS316, SUS316L, SUS304/316L | Brand Name: | Wei Dong |
| Dimension(L*W*H): | 980*750*915-2530*1778*1320 | Range Of Spindle Speed(r.p.m): | 1 - 1440 R.p.m |
| Voltage: | 380V | Weight (KG): | 150KG |
| Highlight: | 1000 kg/h Dry Powder Mixing Machine,SUS304L Dry Powder Mixing Machine |
||
Product Description

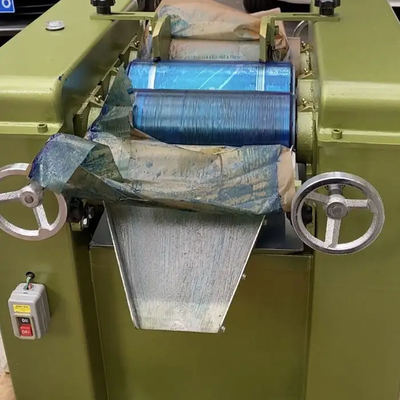

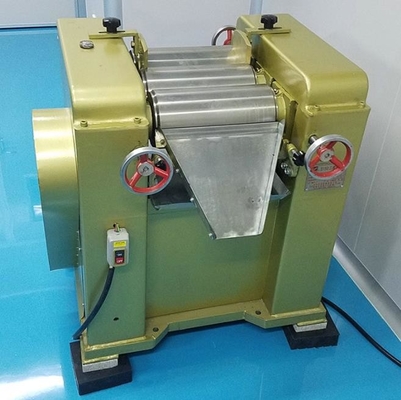

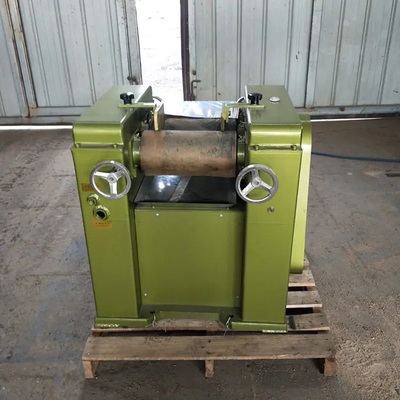

Efficient Three Roll Mill Machine Dry Powder Mixing Machine
Product Description:
The three-roll mill machine is a grinding mill consisting of three horizontally positioned rolls rotating at different speeds. It is widely utilized in the production of inks, paints, coatings, and other materials requiring fine particle size reduction and uniform mixing. The material is fed between the rolls, where it undergoes high shear forces, resulting in effective grinding and dispersion.
Application:
----------Three roll Mill is an ideal and effective grinding and dispersing equipment for high viscosity product, mainly used in various of paint, ink, pigment, plastic, cosmetic, soap, ceramics, rubber, and other liquid and paste materials grinding.
Structure & Working principle:

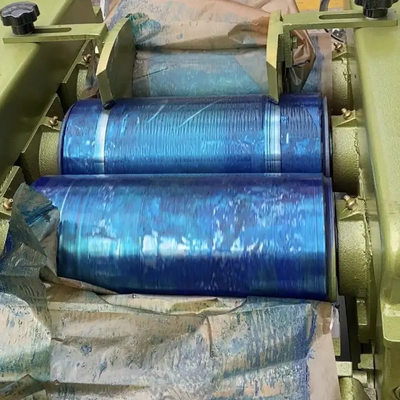

-----------It has three rollers ( roller is made of high wear alloy cast iron) mounted on an iron frame with the center on the straight line. Can be horizontally installed, or slight tilted. Through the horizontal three roller surface extrusion and different speed friction to achieve the grinding effect.

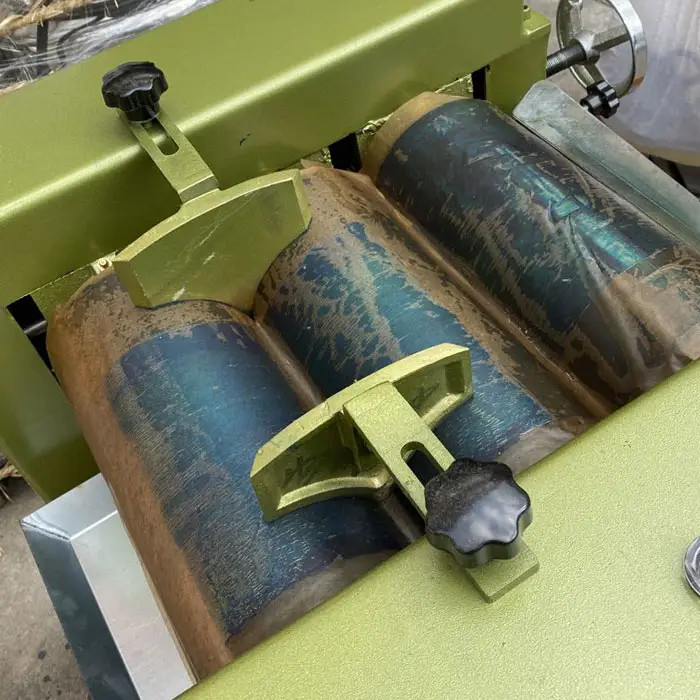

Roller is hollow can be cooled by water. Material was added between the middle and back rollers. Due to the three rollers rotating in different direction ( speed increases from back to front ), generate a good grinding effect. After grinding, material is scraped by scraper in front of the front roller.
Capacity:
| WD65 (1-5 kg/h) | S150 (10-50 kg/h) |
| WD260 ( 50-150 kg/h) | S315 ( 150-250 kg/h) |
| WD405 ( 250-350 kg/h) | S405L ( 350-500 kg/h) |
Packing and Delivery :
Company Profile :
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(55.00%),North America(7.00%),Western Europe(7.00%),Eastern Europe(7.00%),South America(7.00%),Mid East(3.00%),Eastern Asia(3.00%),Africa(2.00%),Southeast Asia(2.00%),Oceania(2.00%),Southern Europe(1.50%),Northern Europe(1.50%),Central America(1.00%),South Asia(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Homogenizing Emulsifier,Blending Mixer,Water Treatment,Filling Machine,face mask filling packing machine
4. why should you buy from us not from other suppliers?
Developing and manufacturing the most advanced, economical and practical top-quality filling and packing machines,Water Treatment,Blending Mixer,Homogenizing Emulsifier and the relative production lines for customers and their different production needs.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,MoneyGram,Western Union;
Language Spoken:English,Chinese
